Blasting Prohibited while splitting
Hydraulic Rock Splitters Manufacturer
Hydraulic rock splitters models: S-36s, S-36, S-90, S-240.
Shrikrishna Equipment hydraulic rock splitter is one of the most popular rock splitter products in India. This rock splitter material of the splitting cylinder is high strength aluminum and special steel material. It is light weight easy to handle and creating high performance pressure. Hydraulic splitter splits much faster and gives greater output, it can be used for horizontal as well as vertical position for cracking or splitting concrete and rocks.
Models: S-36, S-36s, S-90, S-240.
Drill Hole Diameter (mm): 40-42
Drill Hole Depth (mm): 410
Splitting Distance (mm): 15-20

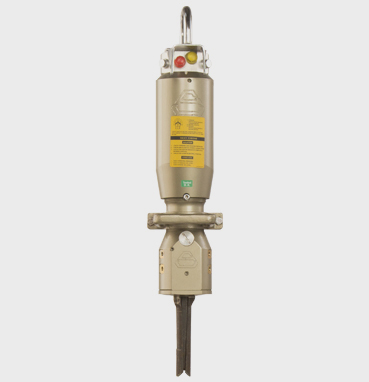

S-36
Drill Hole Diameter (mm): 32-34
Drill Hole Depth (mm): 320
Splitting Distance (mm): 10-15

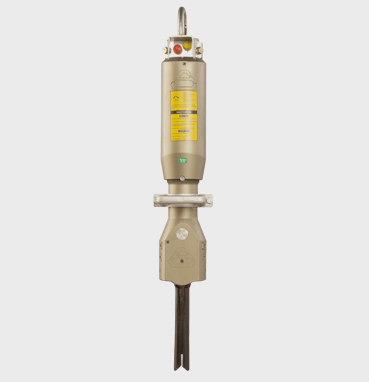

S-36S
Drill Hole Diameter (mm): 45-48
Drill Hole Depth (mm): 580
Splitting Distance (mm): 18-55

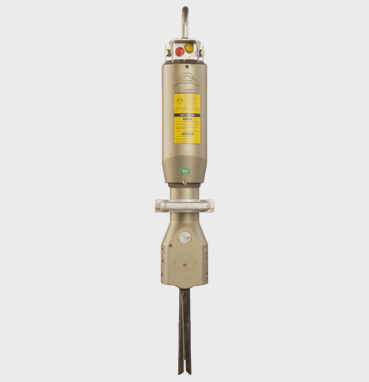

S-90
Drill Hole Diameter (mm): 45-48
Drill Hole Depth (mm): 610
Splitting Distance (mm): 20-50

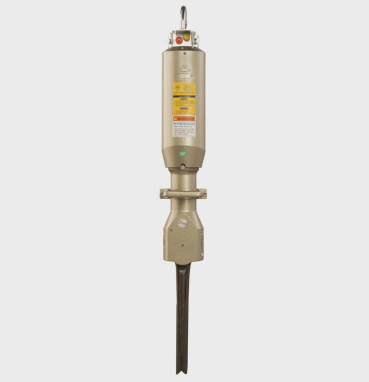

S-240
Model Wise Specifications
| Model | Types of Wedge Set | Drill Hole Diameter (mm) | Drill Hole Depth (mm) | Splitting Distance (mm) | Splitting Force (Kn/Ton) | Length of Splitter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| S-36 | R | 40-42 | 410 | 15-20 | 4525/460 | 995 | 22 |
| S-36s | R | 32-34 | 320 | 10-15 | 3190/319 | 800 | 18 |
| S-90 | L | 45-48 | 580 | 18-55 | 1962/200 | 1190 | 24 |
| S-240 | R | 45-48 | 610 | 20-50 | 2507/358 | 1290 | 32 |
