Demolishing Site Photos

SMART ULTRA LARGE ROCK SPLITTER S 1200

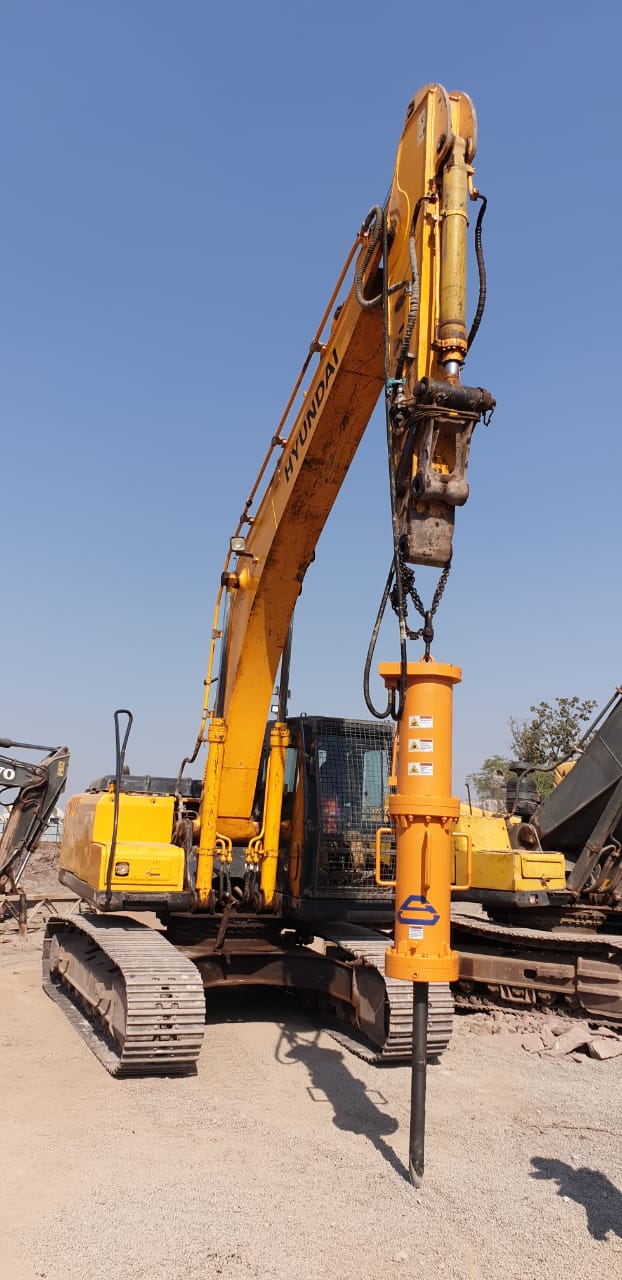

Primary arrangement of connection of Splitter.

S 1200

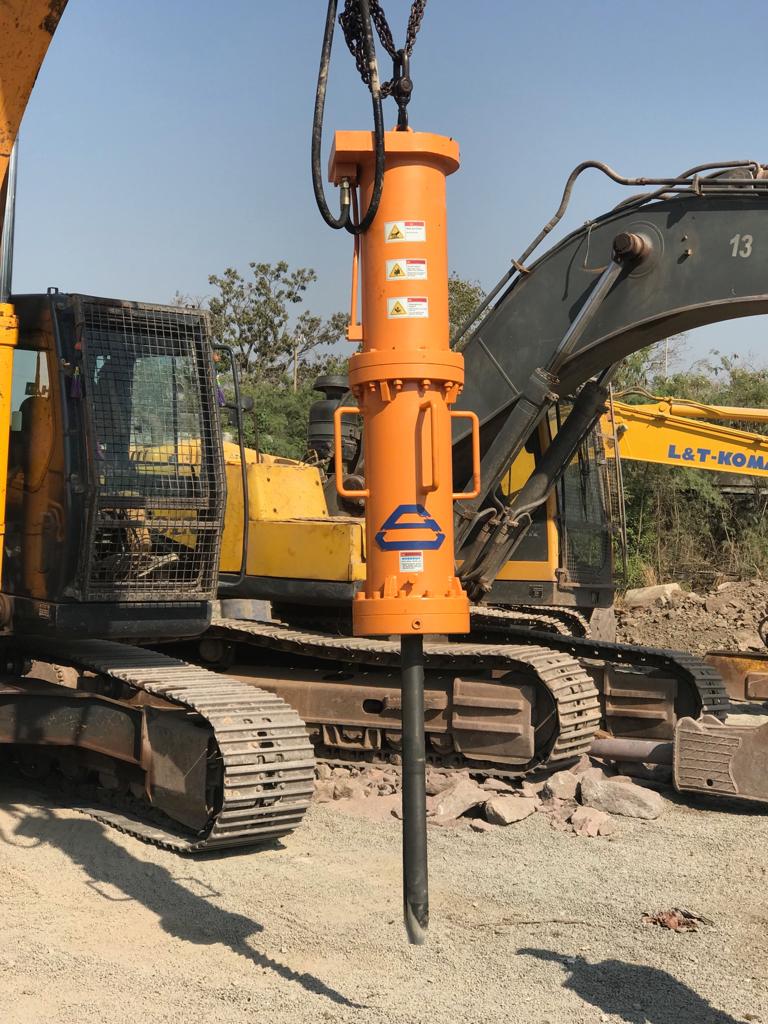

Final arrangement of S 1200.

HYDRAULIC ROCK SPLITTER

Hydraulic Rock Splitter

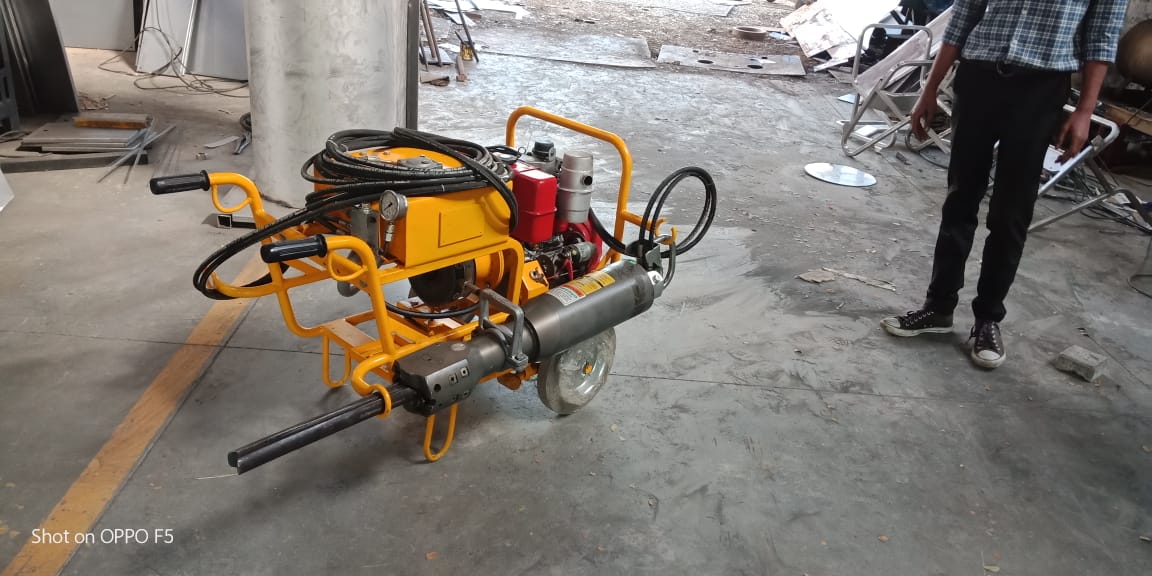

Hydraulic Rock Splitter (S 240) with Diesel Power Pack

Hydraulic Rock Splitter (S 240) with Diesel Power Pack

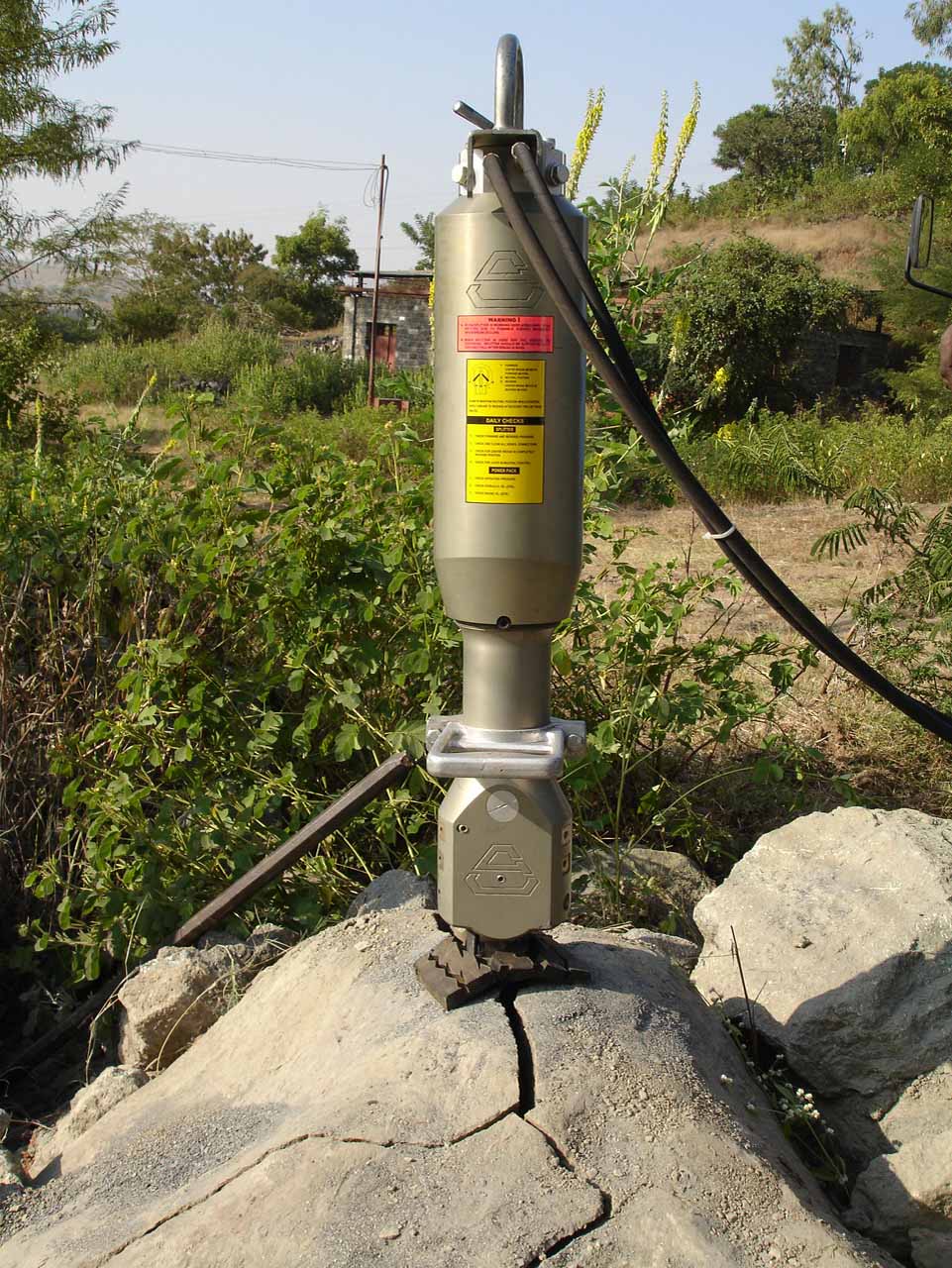

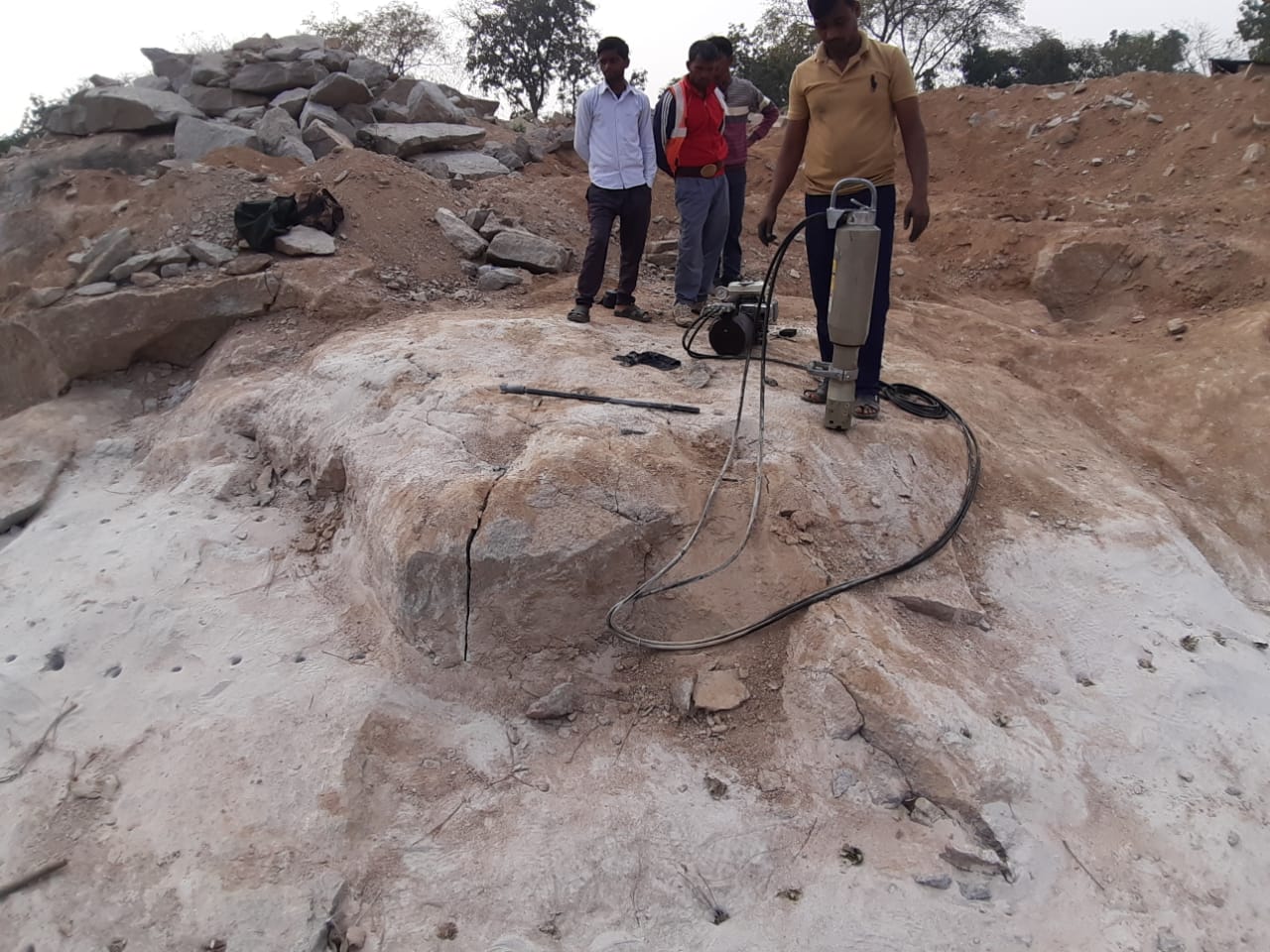

Hydraulic Rock Splitter S 240 at site

Hydraulic Rock Splitter S 240

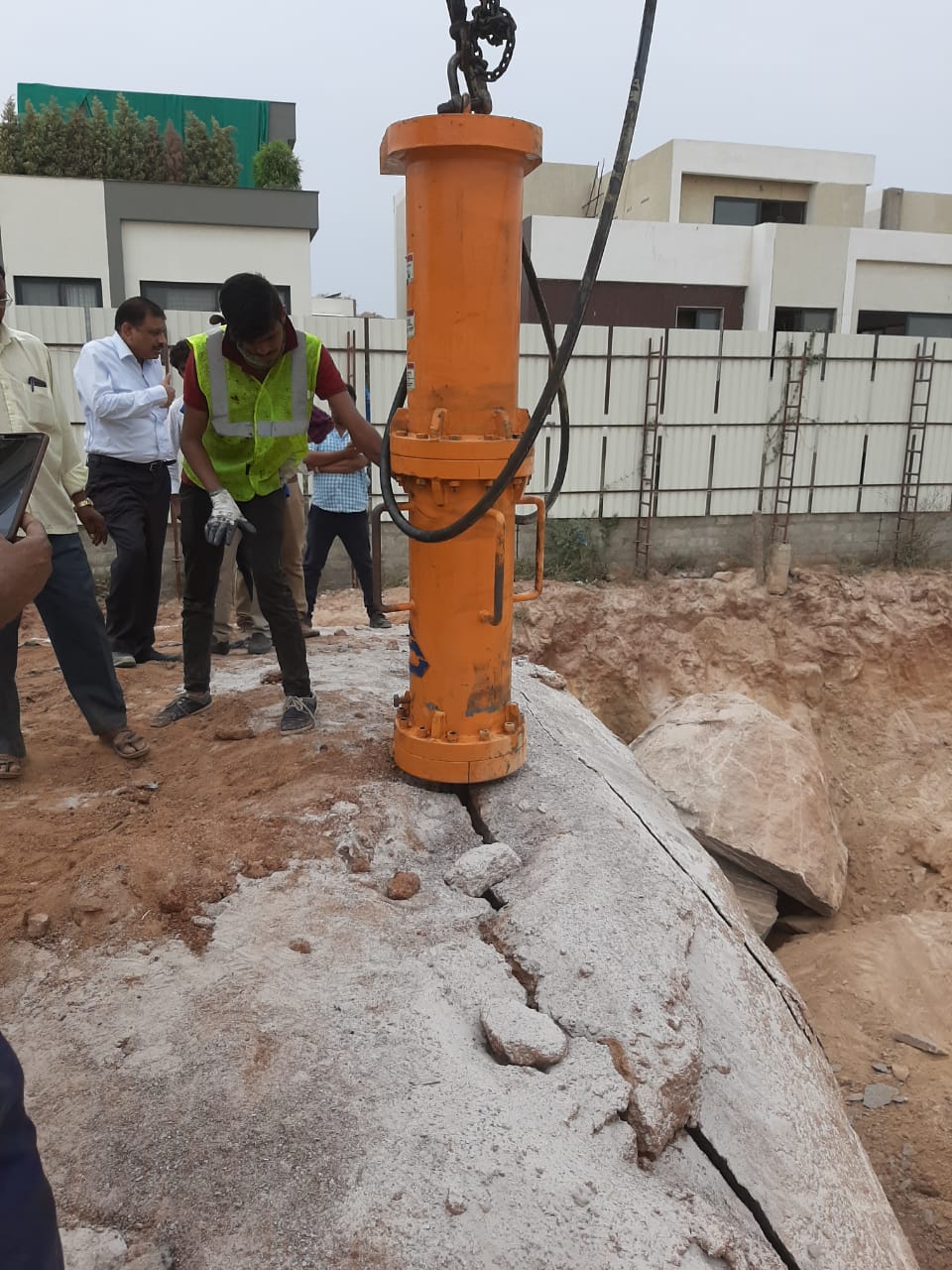

SMART ULTRA LARGE ROCK SPLITTER S 1200 output

Drill hole Dia : 100 mm Hole depth : 1.75 mtr Time required : 5-15 min/drill (as per rock hardness) FOR S 1200 ULTRA LARGE ROCK SPLITTER, Output obtained.

Drilling Attachment

Drilling of 115 mm dai required and then the splitter is inserted in the drilled hole.

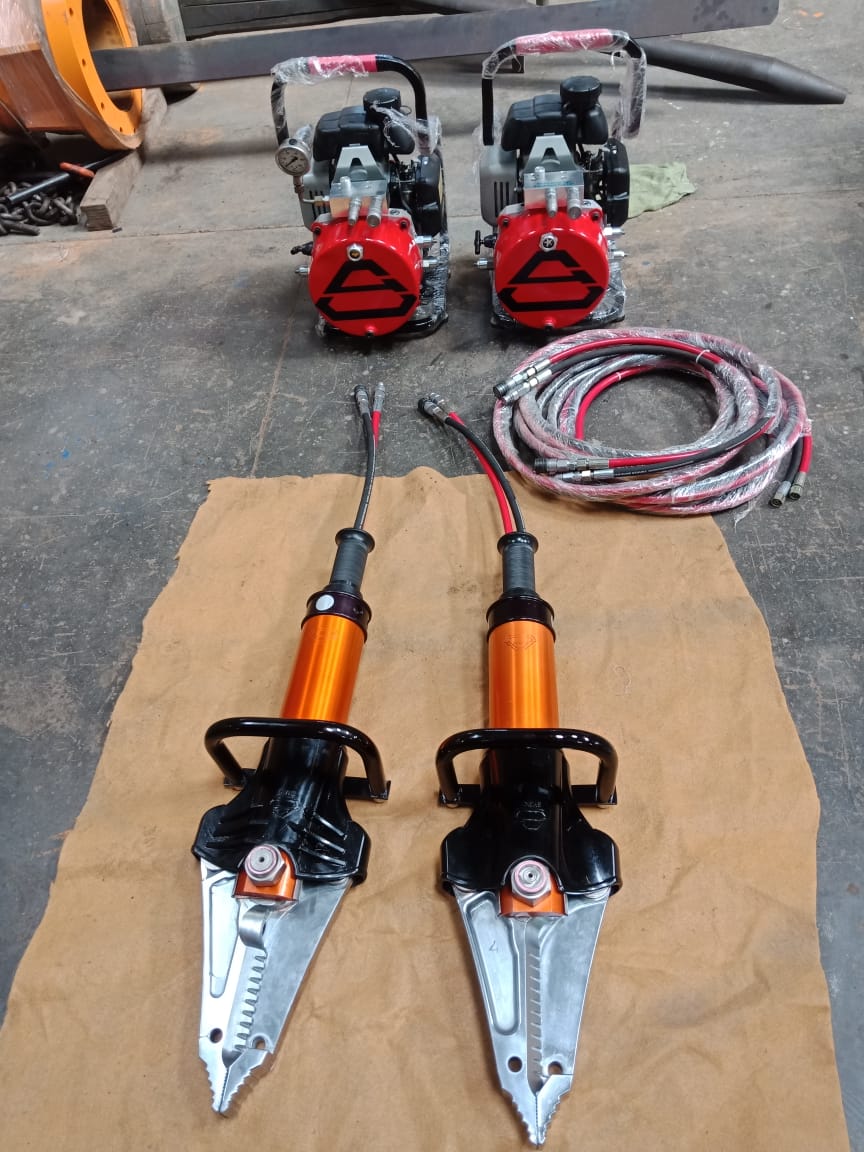

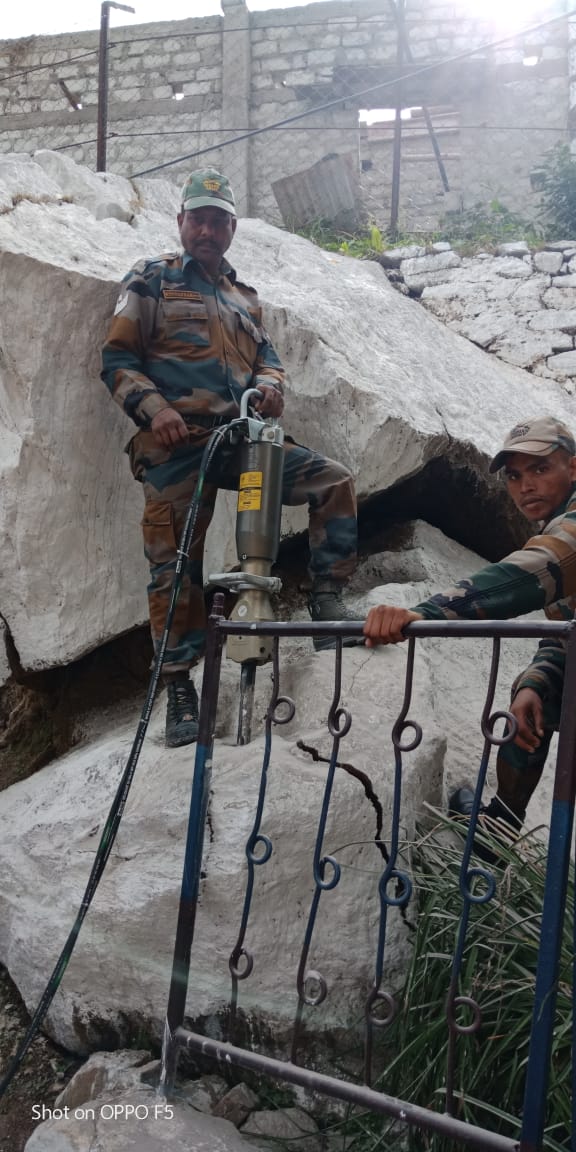

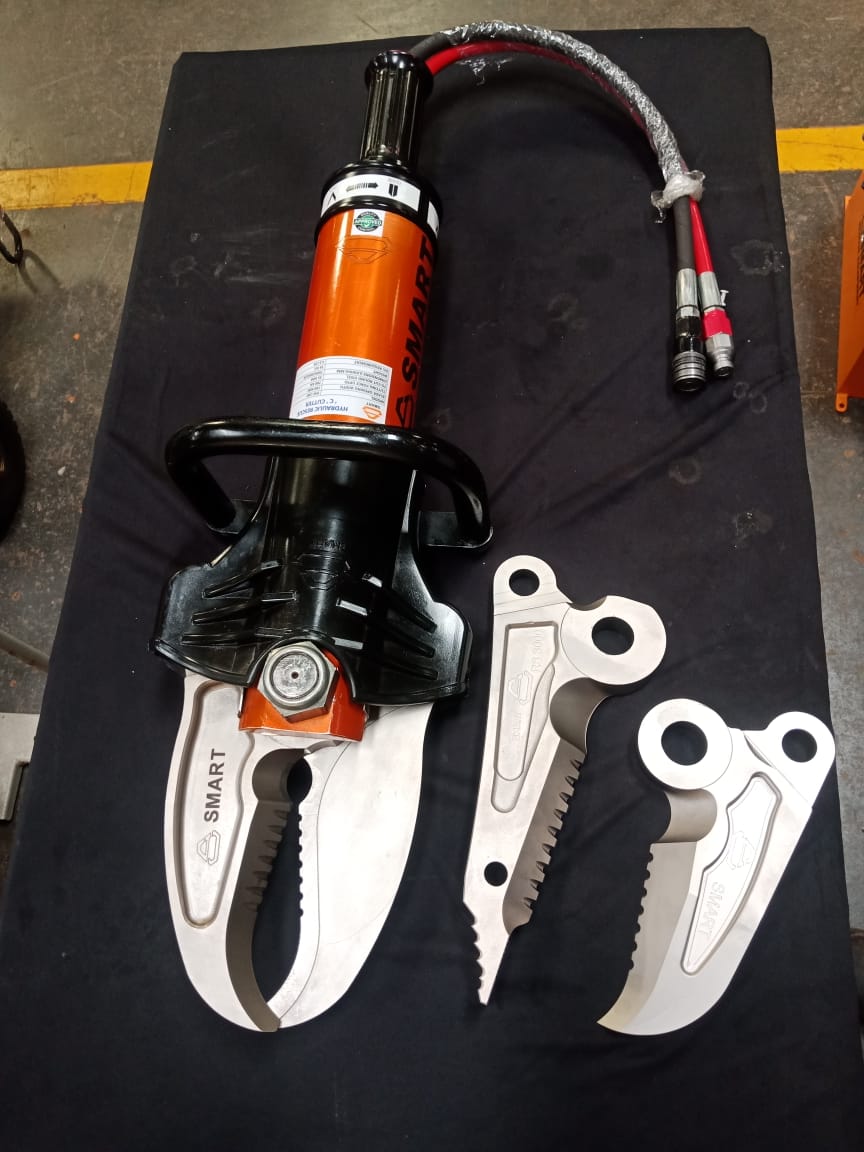

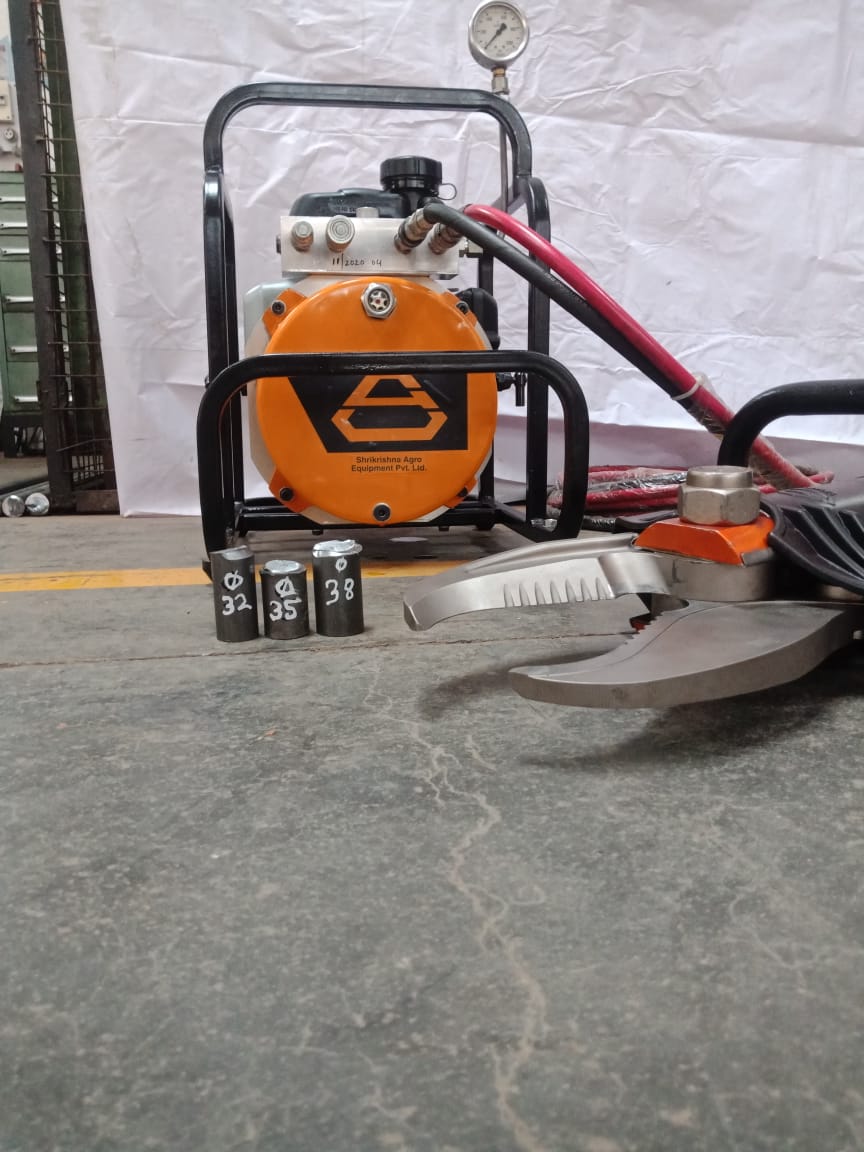

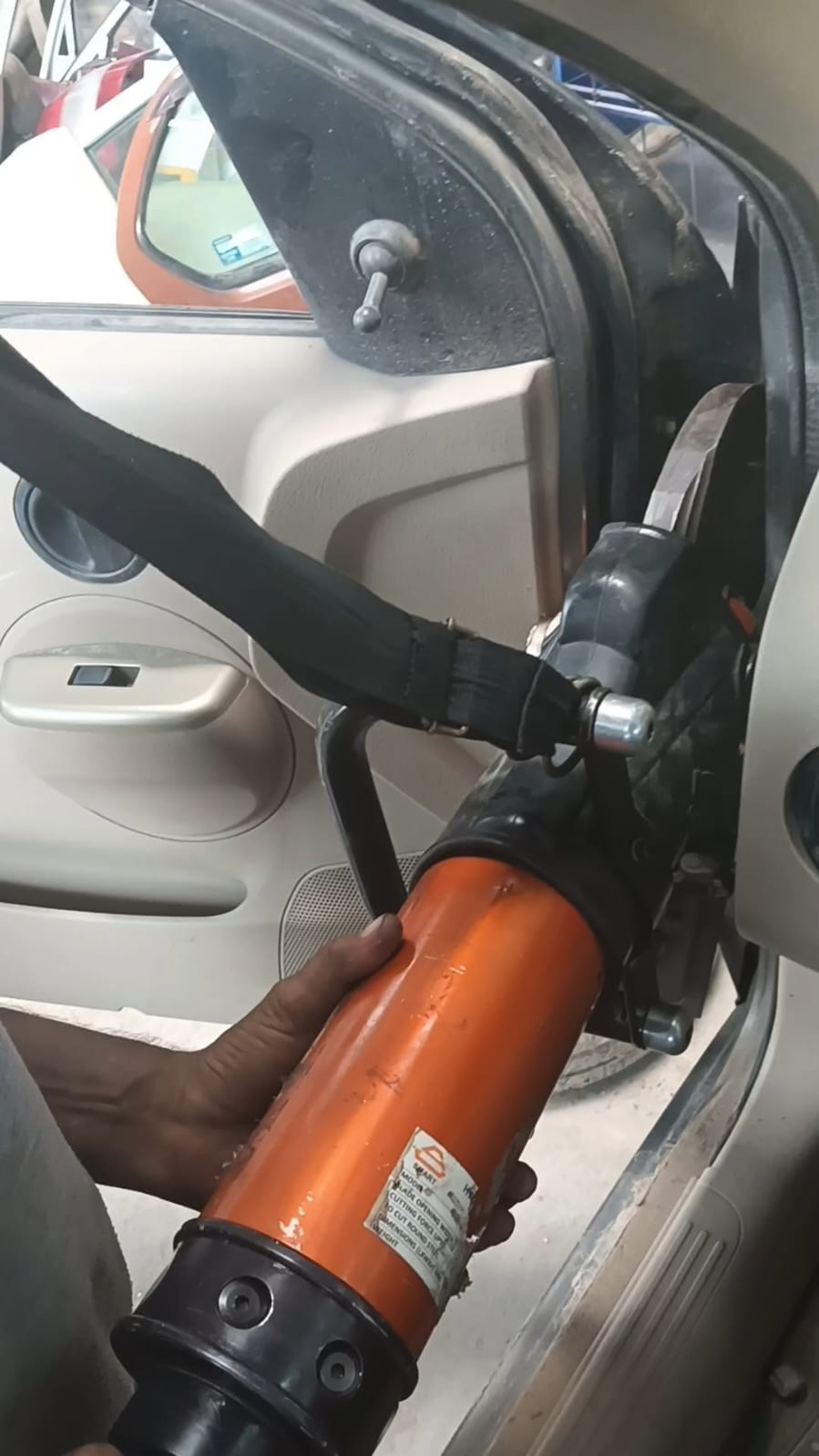

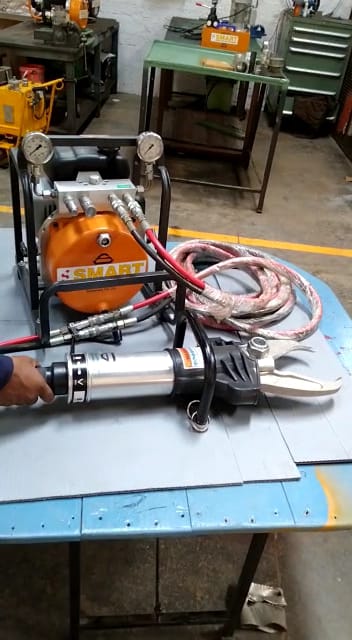

Rescue Site Photos

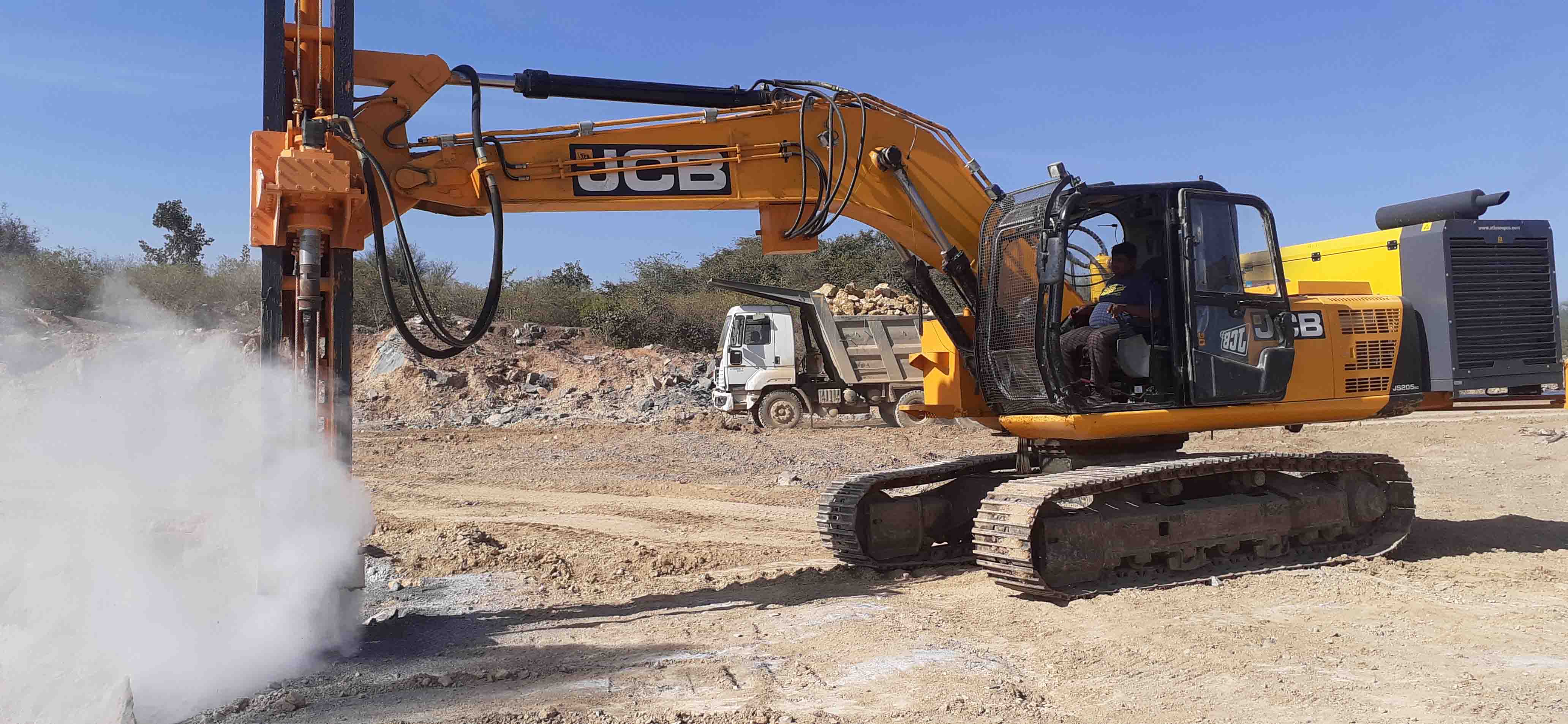

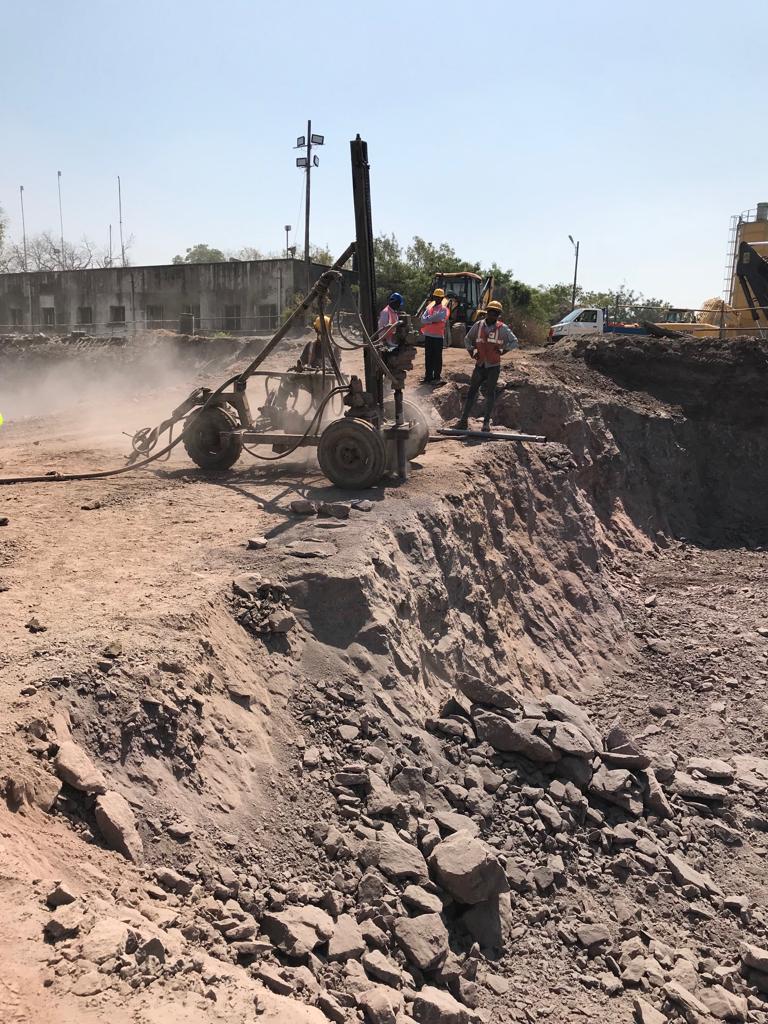

Drilling activity for S 1200

Drill hole Dia : 100 mm Hole depth : 1.75 mtr Time required : 5-15 min/drill (as per rock hardness) FOR S 1200 ULTRA LARGE ROCK SPLITTER

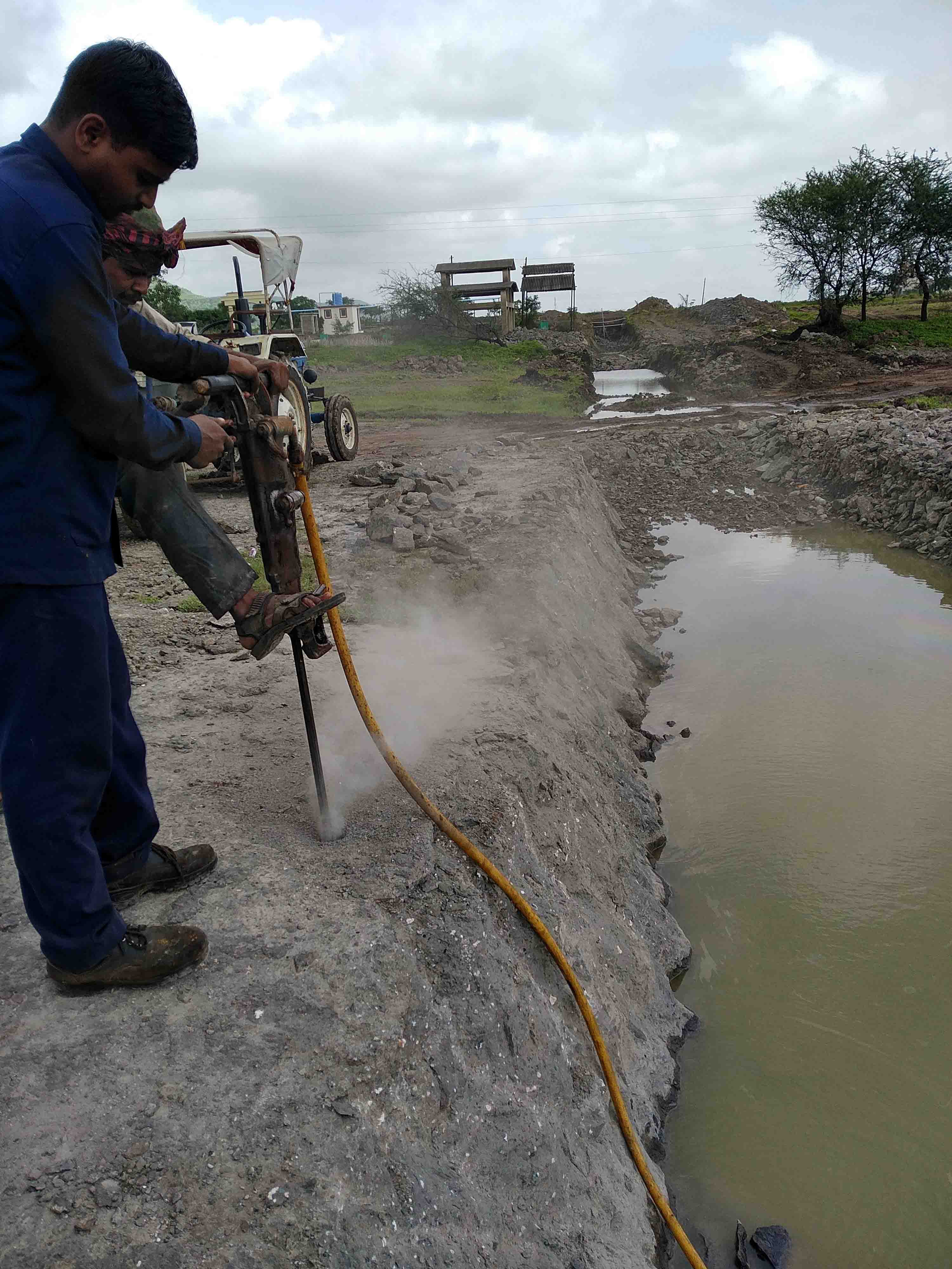

Drilling activity for S 240

Drill dia : 48 mm Drill depth : 650 mm (25 inches) Time required : 5-15 min/drill (as per rock hardness) FOR S 240 ROCK SPLITTER

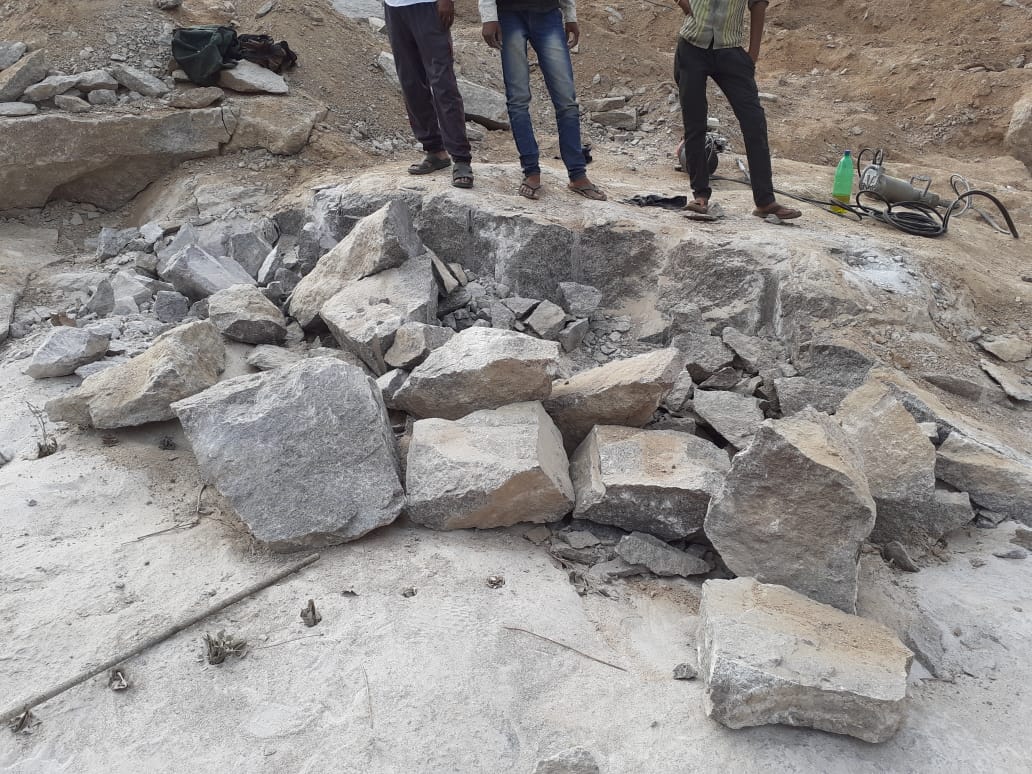

Output of Hydraulic Rock Splitter S 240
