Blasting Prohibited while splitting
SMART Ultra Large Hydraulic Splitters
SMART Ultra Large Hydraulic Splitter models: S-1200 & S-1800.

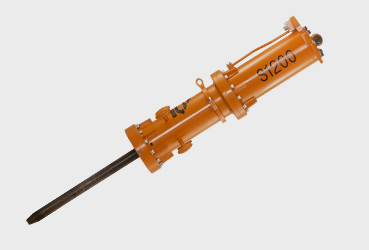

Working of S-1200 Rock Splitter - Wedge set inserted in pre-drilled hole of 100 -102 mm diameter and 1800 mm deep. S-1200 cylinder pushes centre wedge between two counter wedges. Which applies a 2500 ton splitting force on side wall of rock hole, resulting in splitting of rock without any noise and vibration. The output of the S-1200 will be @ 250 to 300 m³ per day.
TO OBTAIN MAXIMUM OUTPUT FOLLOWING STEPS RECOMMENDED:
Models: S-750, S-950, S-1200 & S-1800.

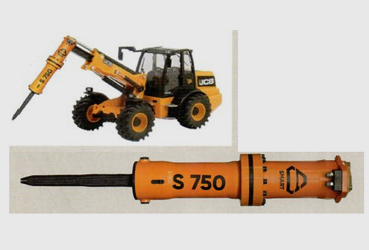

S-750

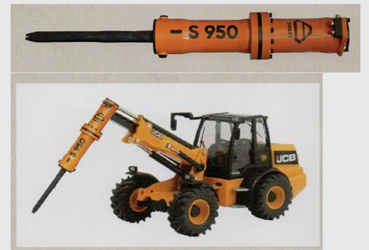

S-950
Drill Hole Diameter (mm): 108-118
Drill Hole Depth (mm): 2000-2200
Spliting DIstance Between 2 Holes (mm): 600-800*
S-1200
Drill Hole Diameter (mm): 126-133
Drill Hole Depth (mm): 2900-3200
Spliting DIstance Between 2 Holes (mm): 600-800*

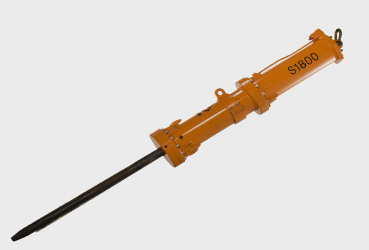

S-1800
Model Wise Specifications
| Model | Drill Hole Diameter (mm) | Drill Hole Depth (mm) | Spliting DIstance Between 2 Holes (mm) | Splitting Force (Kn/Ton) | Wedge Diameter mm | Wedge Length mm | Length of Splitter mm | Cylinder Length mm | Hydraulic Pressure min/max bar | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|
| S1200 | 108-118 | 2000-2200 | 600-800* | 24510/2500 | 105-115 | 1200 | 3000 | 1850 | 350/500 | 750 |
| S1800 | 126-133 | 2900-3200 | 600-800* | 53930/5500 | 123-130 | 1958 | 4500 | 2550 | 300/500 | 1500 |
*Distance between two holes whereis according to rock thikness and rock stata and that distance can go up to 1100
