Hydraulic Spreader Manufacturer

Hydraulic Spreader models: SHS-700.

The function of spreading, tearing, clamping, Pulling etc. Without the need of changing working head. The working head with unique anti-skid design, good anti- skidding performance. The manual reversing valve equipped with neutral automatic reset makes operation convenient & more accurate.

Hydraulic Spreader Features
  • With the function of spreading, tearing, clamping, pulling etc. Without the need of changing working head.
  • The working head with unique anti-skid design, good anti-skidding performance.
  • Adopt bidirectional hydraulic lock, with self - locking function.
  • The equipment body adopts lightweight high strength aluminum alloy material with ceramic coating on surface, artistic and suitable for underwater operation.
  • The handle is easy for left- and right-hand operation, moving parts have protecting jacket to ensure operator's safety.
  • The spreader head is embedded in the spreader arm with flat structure which can wedge narrow gap to carry out fast rescue.

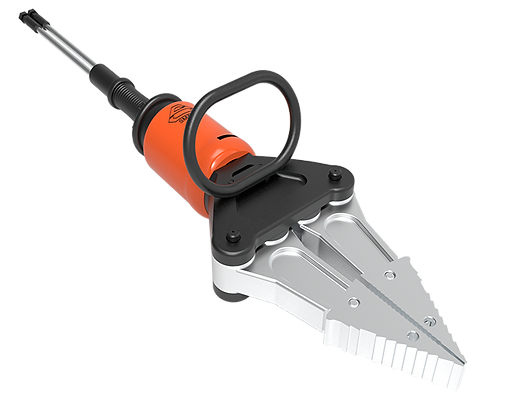

HYDRAULIC SPREADER
Model: SHS-700.
HYDRAULIC SPREADER
Model Wise Specifications
Model SHS-700
Spreading Force (Tons) 5.2
Max Spreading Distance (mm) 740
Max Pulling Length (mm) 600
Max Pulling Force (Tons) 7.4
Weight(kg) 17
width(mm) 700
Pump Capacity (liters) 5.4
The working of the hydraulic spreader model
Shrikrishna Hydraulic Spreader tech movie
